T-Harnesses
Factory radio
2014-2019 gm factory radio/amp
Subwoofer amplifier
The LOC can work with any amplifier you have or plan to use. Keep in mind some amplifiers take a high level input and offer settings to repair bass for a better experience and an LOC is not needed.
Wavetech-Link2 LOC
- Provides audio wave clip detection
- 0.1-10V signal to amp
- 0.1-40v Input from factory source
- Audio triggered remote turn on for your system (no more sub pop)

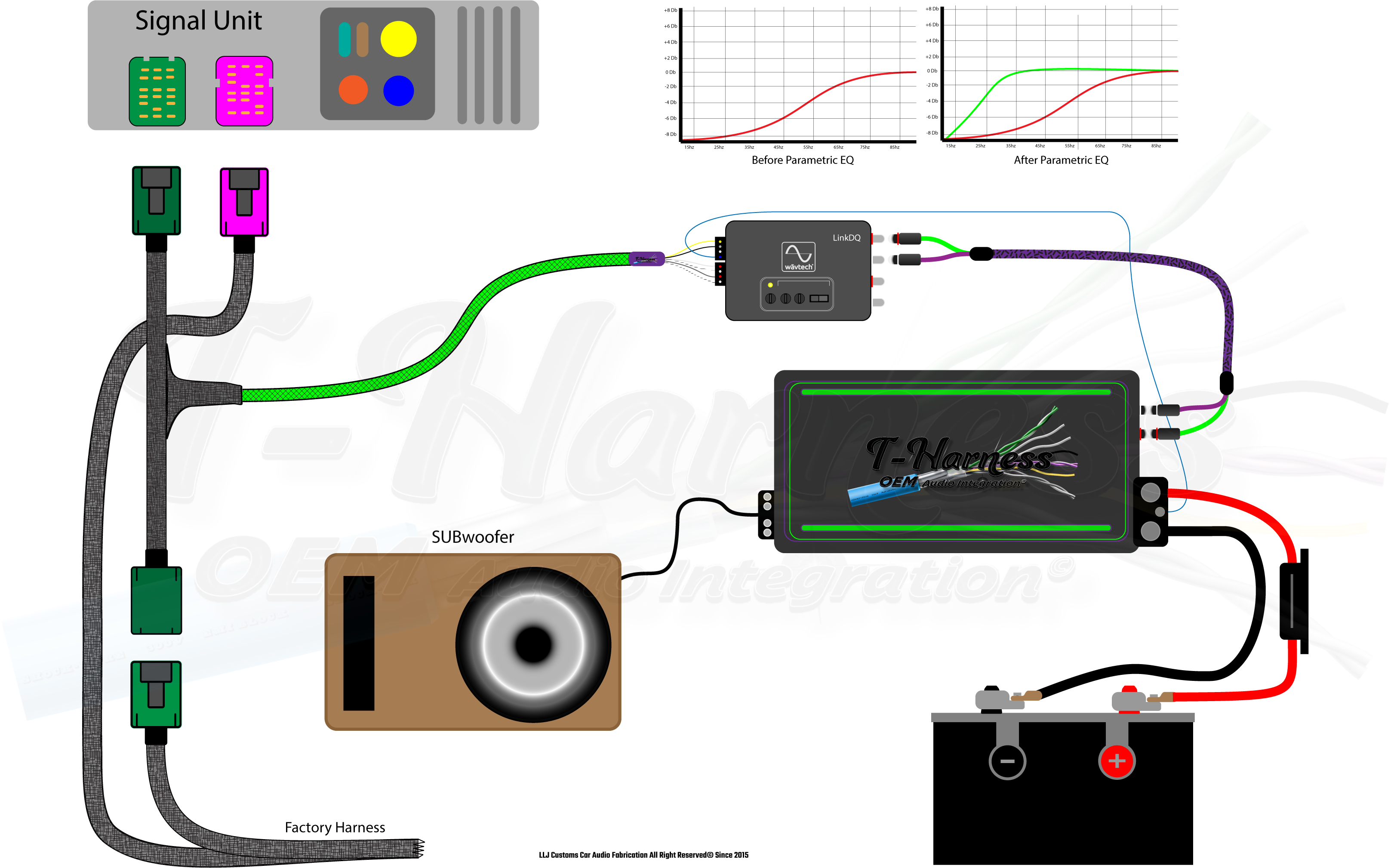

2ch T-harness
Shock-Wire© Twisted 2ch sub T-harness:
- Provides left and right signal for a true mono channel.
- 12v Power & Ground up to a 5 amp draw.
- Factory fitment guarantee
- keep all factory features
Filters
11 products
Its all about the ..
Spec's NOT, brand names!
We understand the confusion and misleading information prevalent in the audio industry. Unlike others who push unknown brands or claim superiority of one over another, we believe in honesty and simplicity. In our overview, we delve into several products and their specifications, emphasizing the importance of considering price in relation to value. We acknowledge the competitive nature of the 12v market, where cheap products are made with subpar components, while higher quality necessitates meticulous design, time, and durable parts. We encourage you to seek out companies that prioritize both quality equipment and fair pricing, ensuring that the specifications align with the value you seek.
Risky-$139.99
Maximum Input Handling. . . . . 40V / 400W (20 kΩ setting)
Maximum Output Level. . . . .9.5 Vrms
Output Gain. . . . . . . . . +/- 12 dB
ACR-1 Attenuation Range. . . . . . . 0 dB to -19 dB
Frequency Response. . . . . . 20 Hz to 50 kHz
Total Harmonic Distortion. . . . . .0.01%
Signal to Noise. . . . . . . . . . . . . . >110 dB
Input Impedance. . . . . . . . . . .Selectable (20 Ω, 60 Ω, 20 kΩ)
Output Impedance. . . . . . . . 150 Ω
Power Draw. . . . . . . . .200 mA
Recommended Fuse Rating. . . . . . 1 Amp
Weight & Dims (with connectors). . . . . . .. . 0.75 lbs. / 6.9”L x 3”W x 1”H
Better- $99.95
- Adjustable Parametric EQ
- Selectable Narrow or Wide
- Frequency Range 30Hz to 80Hz
- Output Voltage (Max)--------- >10-13.3Vrms
- Output Impedance ------------- <50Ω
- Input Sensitivity
- Max Input Voltage (SPK) ------ 40Vrms
- Frequency Response ----------- <10Hz to > 100kHz
- THD+N (SPK/RCA) --------------- <0.04% / <0.04%
- S/N (SPK/RCA) -------------------- >115dBA / >116dBA
- Parametric EQ (Boost/Freq) 0 to +12dB / 30-80Hz
- Turn-On Trigger ------------------ +12V, DC-offset & Audio Detect
- Generated +12V Output ------ >500mA
- Chassis Dimensions ------------- 1.1”x2.9”x3.5” (29x75x89.5mm)
- Differential Balanced Inputs
- Low Impedance Outputs
- Variable Gain Adjustment w/Clip LED
- Auto Turn-On via DC-Offset or Audio Signal Detect
- Generated +12V Remote Output
- OEM Load Detect Compatible
- Locking Detachable Power/Speaker Terminals

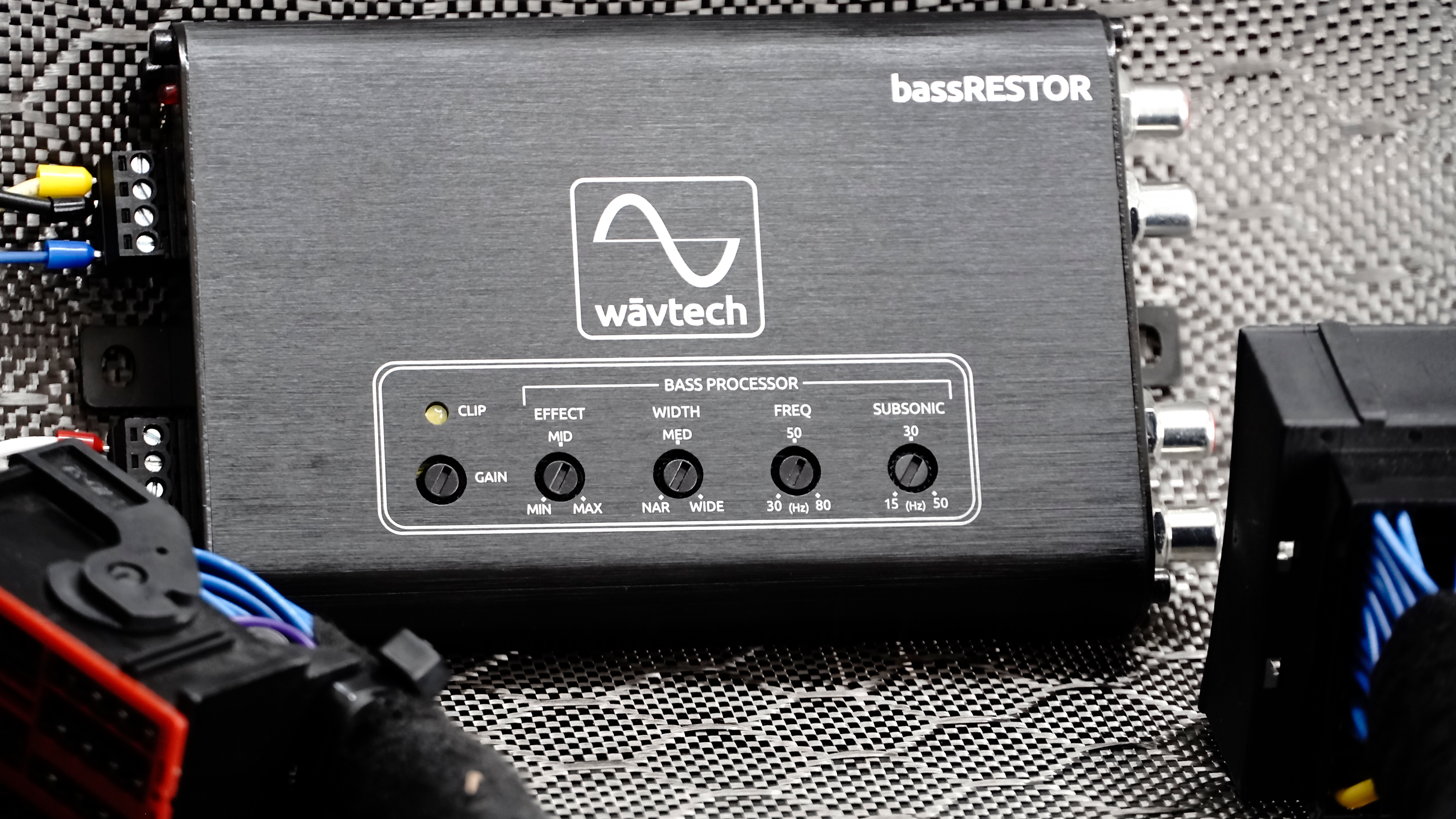

Best - $199.95
- Output Voltage (Max) ----------- >10-13.3Vrms
- Output Impedance --------------- <50Ω
- Input Sensitivity
- Max Input Voltage (SPK) ------- 40Vrms
- Frequency Response ------------- 15Hz to >100kHz
- THD+N (SPK/RCA) ---------------- <0.05% / <0.1%
- S/N (SPK/RCA) --------------------- >115dBA / >114dBA
- Bass Restoration
- Subsonic Filter ---------------------- 15Hz-50Hz
- Turn-On Trigger -------------------- +12V, DC-offset & Audio Detect
- Generated +12V Output -------- >500mA
- Chassis Dimensions --------------- 1.1”x3.5”x5.2” (29x90x133mm)
- Differential Balanced Inputs
- Low Impedance Outputs
- Variable Gain Adjustments w/Clip LEDs
- Auto-Turn On via DC-Offset or Audio Signal Detect
- Generated +12V Remote Output
- OEM Load Detect Compatible
- Locking Detachable Power/Speaker Terminals
Automotive Audio turn on trigger
A Remote turn on you can trust to work like you need it to.
- +12V Output Generation
- Capable of Driving Multiple Relays Simultaneously
- 1.5A Continuous Output Current
- Independently Select DC Offset or Audio Detect, or Use Both Simultaneously
- Locking Detachable Terminals
- Compact Size
- Dimensions: 0.7”x1.7”x1.4” (18x44x36mm)
4ch T-harness
Our advanced 4-channel T-harness goes beyond the basics to provide additional benefits that enhance your audio experience. We incorporate twisted wire with EMI blocking technology, ensuring a clean and interference-free signal transmission between the source unit and receiving LOC,DSP or amplifier . This not only maintains audio quality but also minimizes potential disruptions caused by electromagnetic interference. Moreover, we take pride in our attention to detail by using premium-grade Tesa tape, which discreetly secures the harness and maintains a factory-like appearance, seamlessly blending with your vehicle's original wiring. It's important to note that our T-harness is designed to provide only the signal from the source unit, whether it's the factory radio or amplifier, ensuring compatibility and reliable audio output while preserving the integrity of your vehicle's audio system. With our feature-rich 4-channel T-harness, you can enjoy superior sound quality, a clean installation, and a factory-like aesthetic, all in one comprehensive solution.
Labeled and colored
Everything we do and offer is to help you make your interaction with your installation as easy and problem free as remotely possible.
