GMC T-harness Aqua/Tan 2019-2024 (None amplified) R2G
- 100% Hand Made
- LOC will come pre-wired IF selected below
- 24-25" inch harness length
- 100% copper USA made wire
- Vehicle factory OEM connector fitment
- TESA tape base finish with abrasive resistant loom.
- Shock-Wire© EMI blocking twisted speaker wire
- Wire Ferrule termination
- 5 year warranty
- Originally designed & made in the USA
- Signal-left/right, power, ground
- LOC unit provided remote turn on
- Harnesses ship in 3-5 business days from order date.
Adding a Sub to your new 2019 and up GM factory radio has never been so easy. Our GM T-Harness design truly works as advertised and doesn't need a laptop or overcomplicated steps. Our plug and play GM T-harnesses are guaranteed to deliver the signal you need for adding quality bass. The Gm T-harness and active processor options we pre-selected for you will over deliver, every time.

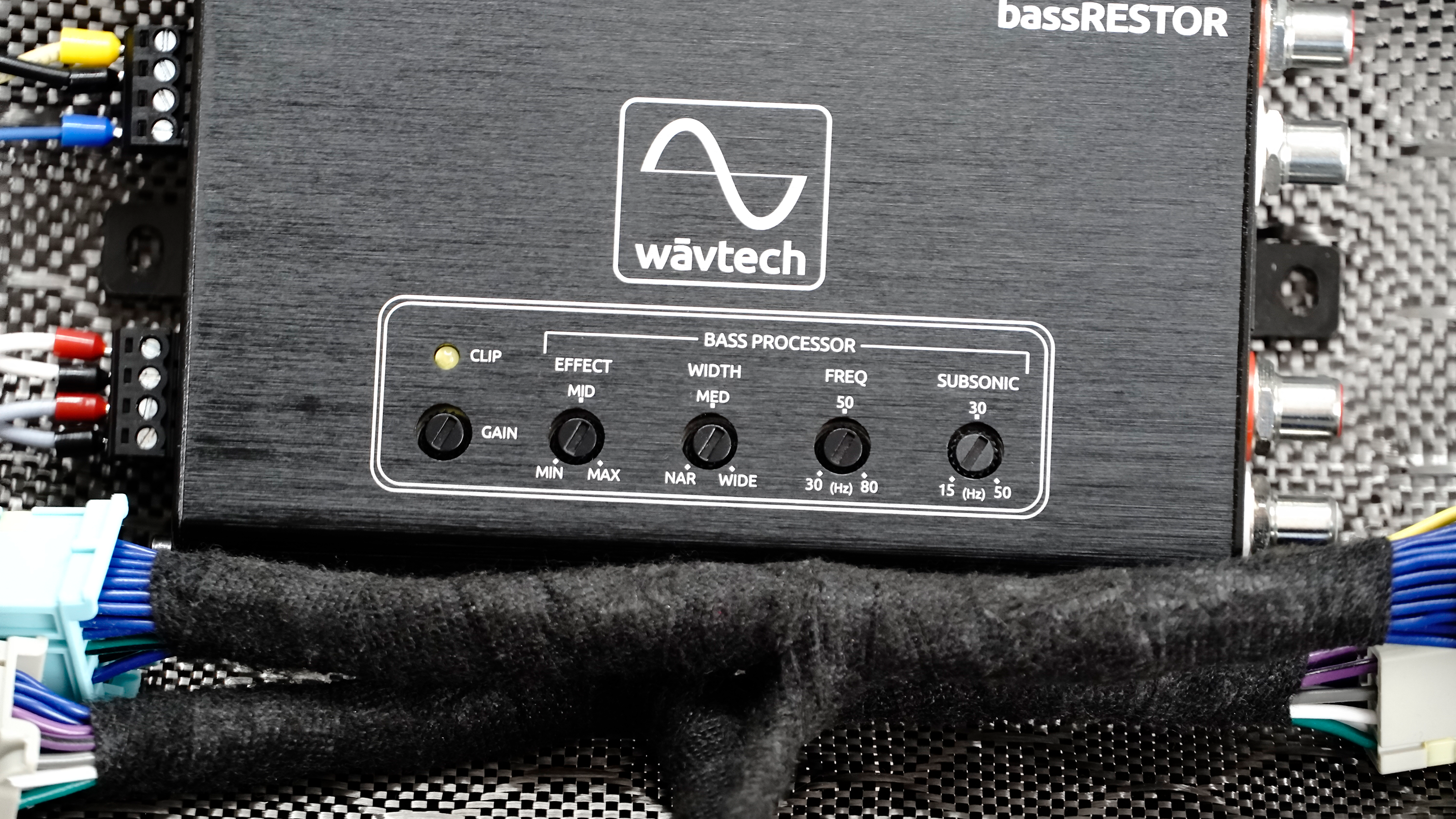

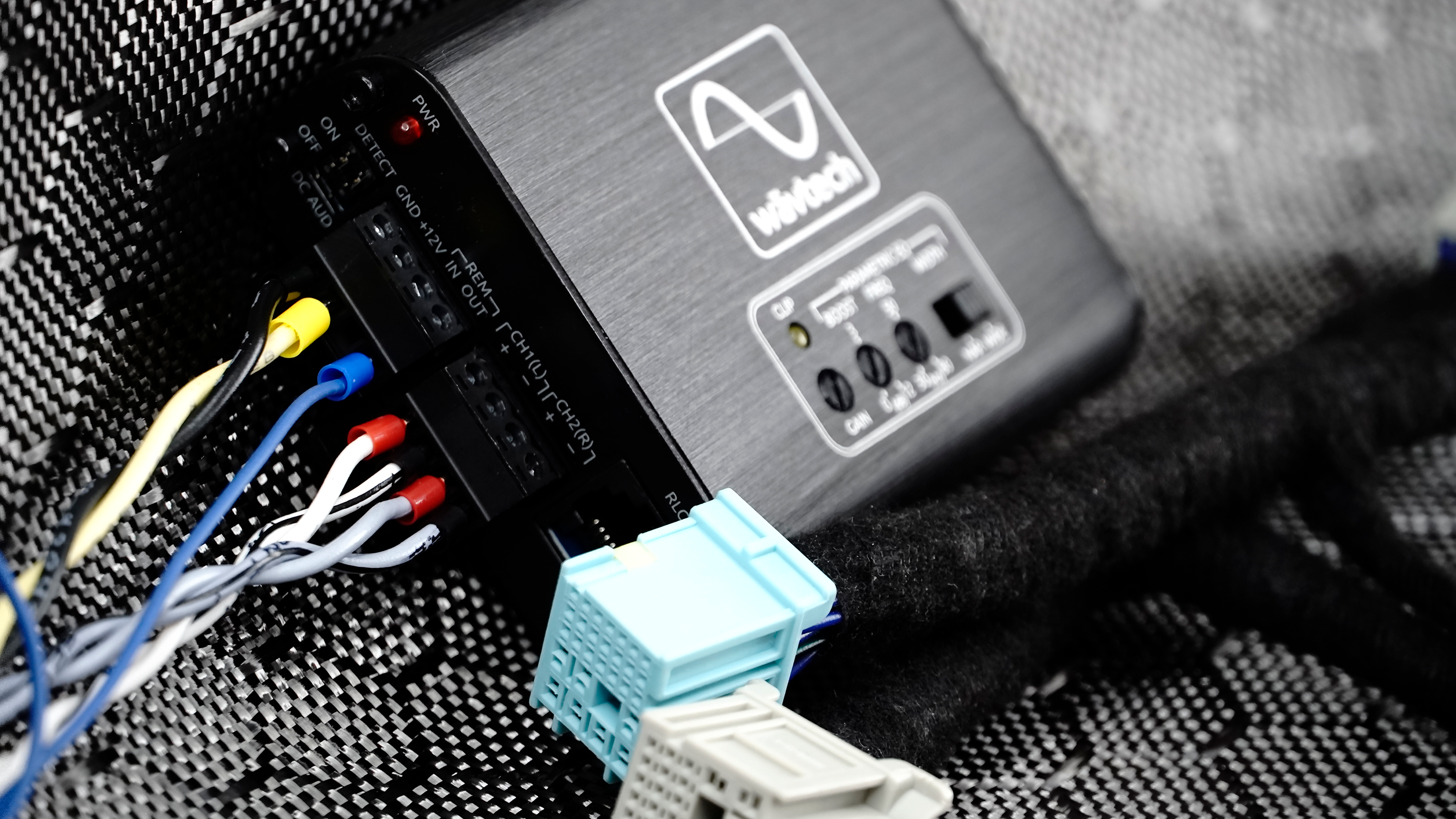

Want to target and modify a specific frequency for better results? Take a look at the LinkDQ. Maybe you have no bass or want to go past what the vehicle (or a flat signal) can deliver? the bassRESTOR will be the best tool for the job . The patented technology means, no turn-on pop when using the audio turn on feature. As well as no dead radio screen, given that we just use the audio and don't mess with the Canbus system. Other features like clip detection let you know when the signal you're using from your vehicle is starting to bottom out and introduce distortion.
For non-Bose, non-factory amplified systems, you'll find the connectors behind the glove box, near the kick panel. Make sure your vehicle has the aqua and tan connector, as they can't be swapped or used in place of the black and gray connectors. Ordering the wrong color may lead to installation delays. In the case of Colorado/Canyon vehicles, the connector is located behind the screen

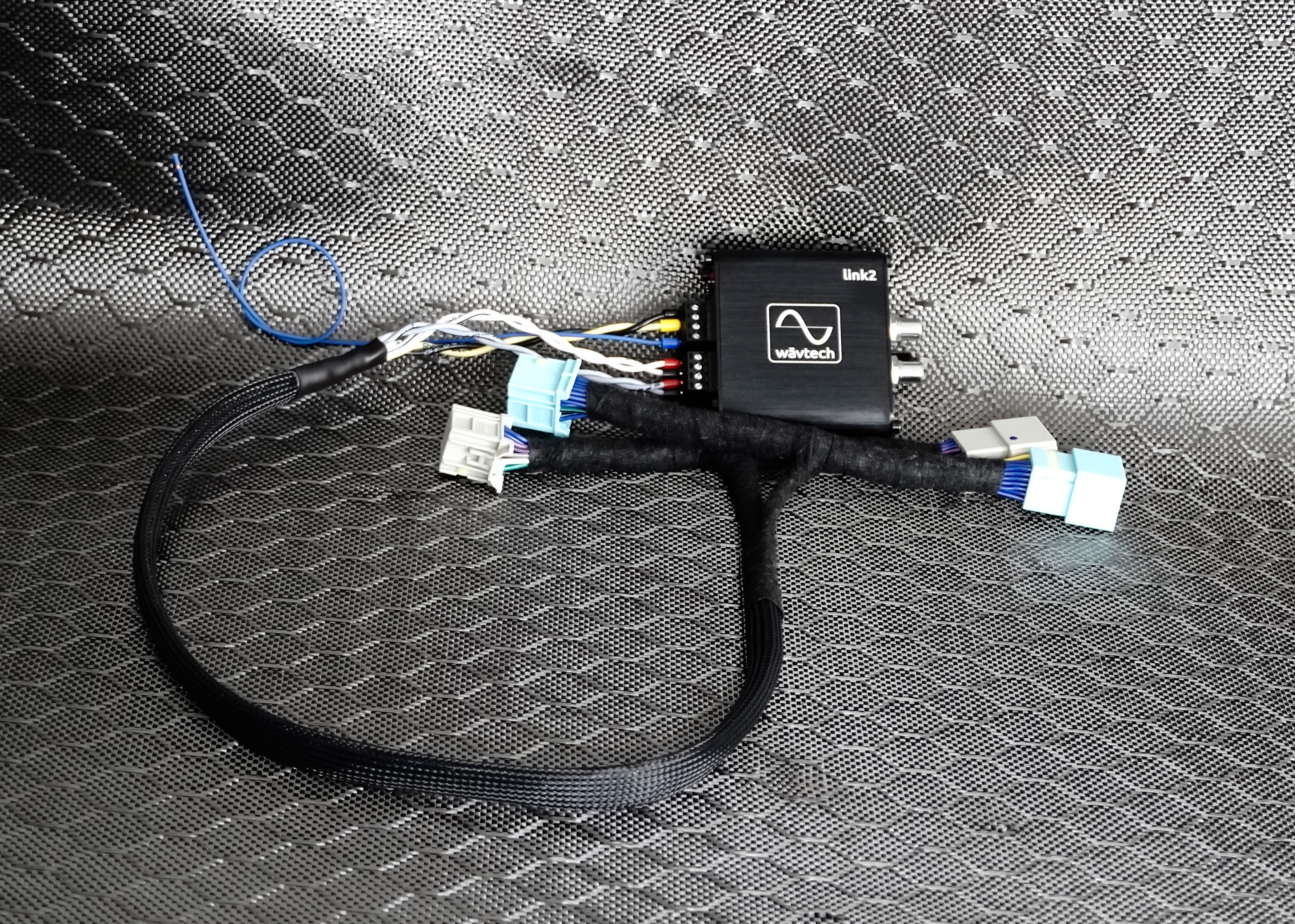

* Harness is 24 inches in length and will come pre terminated and wired to the unit selected.*
Please verify the connector colors in the vehicle BEFORE ORDERING, this is a final sale item. Thank you
Returns & Warranty
- LOC units will be pre-wired to the harness.
- All units have a 5 year warranty. Do NOT USE DB or similar units on factory amplified systems!.
- A color and information card will be included.
- All of our wire kits are final sale.
- Wire has a 5 year no defects warranty.
- Please verify your vehicle connectors before placing your order.
- All returns must meet our return policy and be approved by our rep. Thank you 😊
GMC T-harness Aqua/Tan 2019-2024 (None amplified) R2G
Sale price$75.00 USD
Regular price (/)
Installation Information

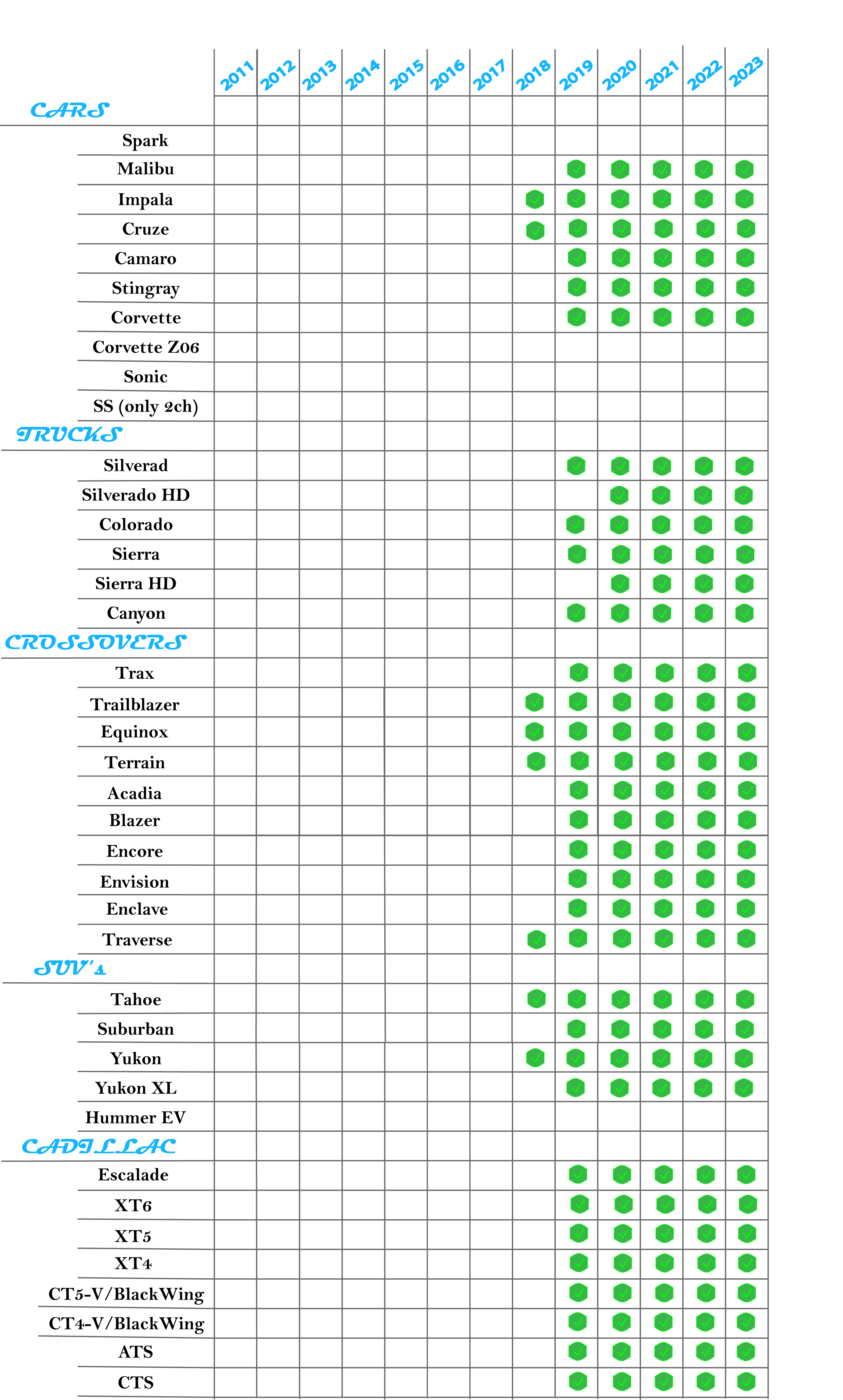

Vehicle Fitment
CADILLAC
- CADILLAC | 2019-2022 | ATS | Without Bose, AKG
- CADILLAC | 2019-2023 | CT6V | Without Bose, AKG
- CADILLAC | 2018-202 | XTS | Without Bose, AKG
- CADILLAC | 2019-2024 | XT5 | Without Bose, AKG
- CADILLAC | 2019-2024 | XT4 | Without Bose, AKG
- CADILLAC | 2020-2022 | CT5V | Without Bose, AKG
- CADILLAC | 2019-2014 | CT5 | Without Bose, AKG
- CADILLAC | 2019-2024 | CT4V | Without Bose, AKG
- CADILLAC | 2019-2014 | CT4 |Without Bose, AKG
- CADILLAC | 2024 | LYRIQ | Without Bose, AKG
- CADILLAC | 2019-2024 | ESCALADE | Without Bose, AKG
--------------------------------
CHEVROLET
- CHEVROLET | 2019-2024 | CAMARO | Without Bose
- CHEVROLET | 2019-2024 | COLORADO | Without Bose
- CHEVROLET | 2019-2024 | CORVETTE | Without Bose
- CHEVROLET | 2019-2024 | CRUZE | Without Bose
- CHEVROLET | 2018-2023 | EQUINOX | Without Bose
- CHEVROLET | 2023-2024 | EQUINOX EV | Without Bose
- CHEVROLET | 2018-2024 | TRAILBLAZER | Without Bose
- CHEVROLET | 2019-2020 | IMPALA | Without Bose
- CHEVROLET | 2018-2022 | BLAZER | Without Bose
- CHEVROLET | 2023-2024 | BLAZER EV| Without Bose
- CHEVROLET | 2019-2023 | MALIBU | Without Bose
- CHEVROLET | 2019-2024 | SILVERADO | Without Bose
- CHEVROLET | 2018-2021 | CAPTIVA | Without Bose
- CHEVROLET | 2019-2024 | SILVERADO HD | Without Bose
- CHEVROLET | 2019-2024 | SUBURBAN | Without Bose
- CHEVROLET | 2019-2024 | TAHOE | Without Bose
- CHEVROLET | 2018-2024 | TRAVERSE | Without Bose
- CHEVROLET | 2019-2023 | VOLT | Without Bose
--------------------------------
GMC
- GMC | 2018-2024 | ACADIA | Without Bose
- GMC | 2019-2022 | CANYON | Without Bose
- GMC | 2019-2024 | SIERRA | Without Bose
- GMC | 2019-2024 | SIERRA HD | Without Bose
- GMC | 2018-2024 | TERRAIN | Without Bose
- GMC | 2019-2024 | YUKON | Without Bose
- GMC | 2019-2024 | YUKON XL | Without Bose
--------------------------------
BUICK
- BUICK | 2019-2024 | ENCLAVE | Without Bose or factory
amplifier - BUICK | 2019-2022 | ENCORE | Without Bose or factory amplifier
- BUICK | 2020-2024 | ENCORE GX | Without Bose or factory
amplifier - BUICK | 2018-2024 | REGAL SPORTBACK | Without Bose or factory
amplifier - BUICK | 2018-2024 | REGAL TOURX | Without Bose or factory
amplifier - BUICK | 2019-2024 | ENVISION | Without Bose or factory
amplifier - BUICK | 2019-2024 | ENVISTA | Without Bose or
factory amplifier

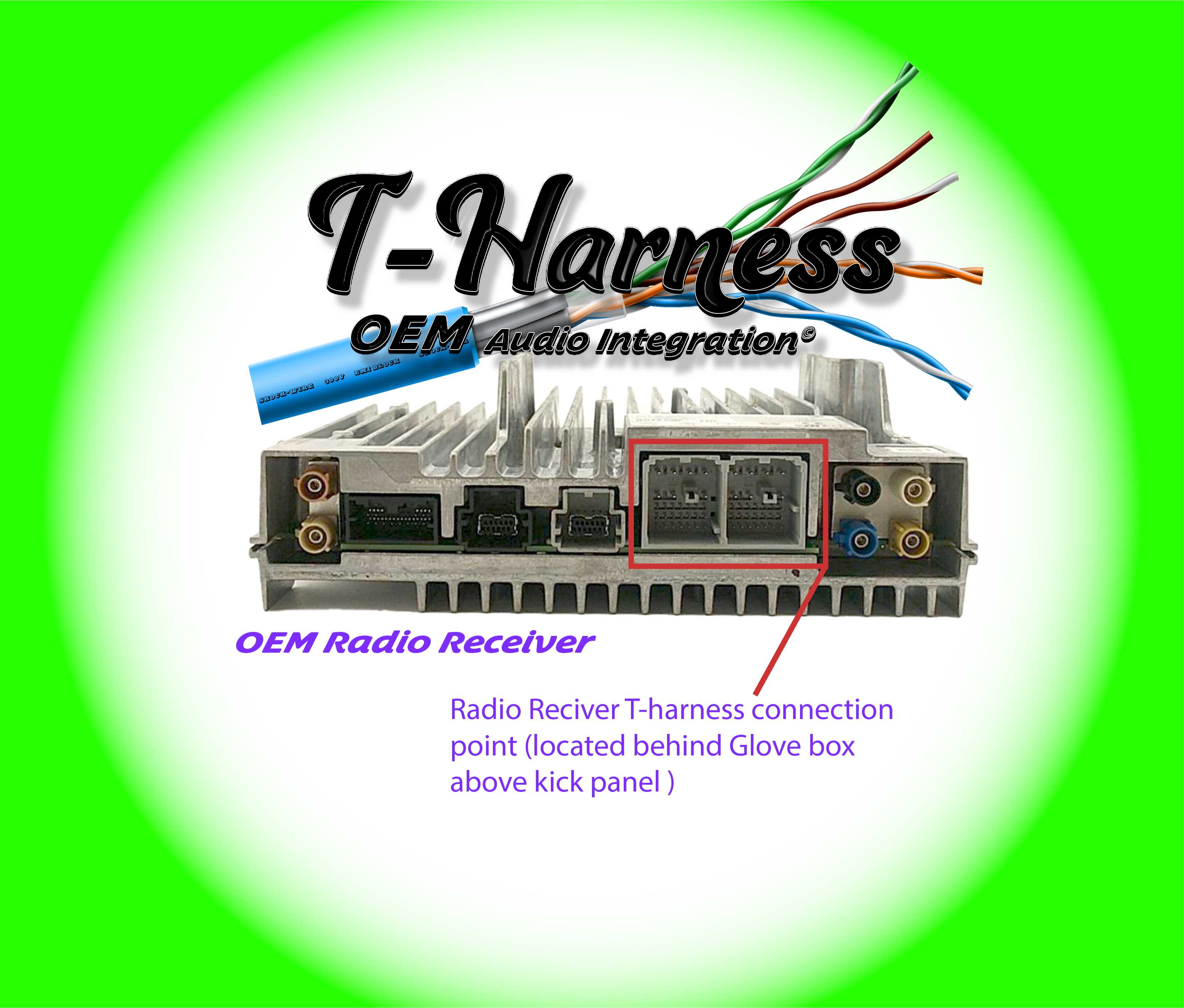

Connection Location
At factory HMI
Cars | SUV's | Crossovers | Pick-ups
--------------------------------
2018-2019 Colorado, Canyon can be behind radio screen
All others the HMI is behind the glovebox, access is from underneath.
Diagrams & Notes
R2G T-harness Installation Manual
Color Code Card & Bass Roll-off info
Notes:
- You MUST verify connector Colors before purchase some will have the Black/gray and some will be Aqua/Tan. Vehicles with none Bose amp may still have a factory amplifier. Please reach out if you have any questions.
- Some vehicles have ANC without the Bose (Crossovers mostly) this is a 3 harness silver box normally under the center console. -ANC bypass GMBB2
- Harness ordered with an LOC/Processor includes a remote turn on cable.
- Chimes will not be affected.
CADILLAC
- CADILLAC | 2019-2022 | ATS | Without Bose, AKG
- CADILLAC | 2019-2023 | CT6V | Without Bose, AKG
- CADILLAC | 2018-202 | XTS | Without Bose, AKG
- CADILLAC | 2019-2024 | XT5 | Without Bose, AKG
- CADILLAC | 2019-2024 | XT4 | Without Bose, AKG
- CADILLAC | 2020-2022 | CT5V | Without Bose, AKG
- CADILLAC | 2019-2014 | CT5 | Without Bose, AKG
- CADILLAC | 2019-2024 | CT4V | Without Bose, AKG
- CADILLAC | 2019-2014 | CT4 |Without Bose, AKG
- CADILLAC | 2024 | LYRIQ | Without Bose, AKG
- CADILLAC | 2019-2024 | ESCALADE | Without Bose, AKG
--------------------------------
CHEVROLET
- CHEVROLET | 2019-2024 | CAMARO | Without Bose
- CHEVROLET | 2019-2024 | COLORADO | Without Bose
- CHEVROLET | 2019-2024 | CORVETTE | Without Bose
- CHEVROLET | 2019-2024 | CRUZE | Without Bose
- CHEVROLET | 2018-2023 | EQUINOX | Without Bose
- CHEVROLET | 2023-2024 | EQUINOX EV | Without Bose
- CHEVROLET | 2018-2024 | TRAILBLAZER | Without Bose
- CHEVROLET | 2019-2020 | IMPALA | Without Bose
- CHEVROLET | 2018-2022 | BLAZER | Without Bose
- CHEVROLET | 2023-2024 | BLAZER EV| Without Bose
- CHEVROLET | 2019-2023 | MALIBU | Without Bose
- CHEVROLET | 2019-2024 | SILVERADO | Without Bose
- CHEVROLET | 2018-2021 | CAPTIVA | Without Bose
- CHEVROLET | 2019-2024 | SILVERADO HD | Without Bose
- CHEVROLET | 2019-2024 | SUBURBAN | Without Bose
- CHEVROLET | 2019-2024 | TAHOE | Without Bose
- CHEVROLET | 2018-2024 | TRAVERSE | Without Bose
- CHEVROLET | 2019-2023 | VOLT | Without Bose
--------------------------------
GMC
- GMC | 2018-2024 | ACADIA | Without Bose
- GMC | 2019-2022 | CANYON | Without Bose
- GMC | 2019-2024 | SIERRA | Without Bose
- GMC | 2019-2024 | SIERRA HD | Without Bose
- GMC | 2018-2024 | TERRAIN | Without Bose
- GMC | 2019-2024 | YUKON | Without Bose
- GMC | 2019-2024 | YUKON XL | Without Bose
--------------------------------
BUICK
- BUICK | 2019-2024 | ENCLAVE | Without Bose or factory
amplifier - BUICK | 2019-2022 | ENCORE | Without Bose or factory amplifier
- BUICK | 2020-2024 | ENCORE GX | Without Bose or factory
amplifier - BUICK | 2018-2024 | REGAL SPORTBACK | Without Bose or factory
amplifier - BUICK | 2018-2024 | REGAL TOURX | Without Bose or factory
amplifier - BUICK | 2019-2024 | ENVISION | Without Bose or factory
amplifier - BUICK | 2019-2024 | ENVISTA | Without Bose or
factory amplifier
At factory HMI
Cars | SUV's | Crossovers | Pick-ups
--------------------------------
2018-2019 Colorado, Canyon can be behind radio screen
All others the HMI is behind the glovebox, access is from underneath.
R2G T-harness Installation Manual
Color Code Card & Bass Roll-off info
Notes:
- You MUST verify connector Colors before purchase some will have the Black/gray and some will be Aqua/Tan. Vehicles with none Bose amp may still have a factory amplifier. Please reach out if you have any questions.
- Some vehicles have ANC without the Bose (Crossovers mostly) this is a 3 harness silver box normally under the center console. -ANC bypass GMBB2
- Harness ordered with an LOC/Processor includes a remote turn on cable.
- Chimes will not be affected.
No brands, just facts
Unit options
Adding subs but don't know exactly what you need? What unit will have what you need and what is just hype? Lets see if we can help ...
DB link high-to-low signal converter
Sale price$19.00 USD
Wāvtech link2 LOC
Sale price$69.94 USD
Wāvtech linkDQ LOC
Sale price$99.94 USD
DB link high-to-low signal converter
Sale price$19.00 USD
Wāvtech link2 LOC
Sale price$69.94 USD
Wāvtech linkDQ LOC
Sale price$99.94 USD
Retain all factory functions
Yes
Yes
Yes
Can be used with a factory amplified system like Alpine or B&O
NO
Yes
Yes
Bass roll off repair
NO
No
Yes
Audio wave clip detection
No
Yes
Yes
Frequency Response
N/A
<10 Hz to >100kHz
<10Hz to > 100kHz
5 year warranty
No
Yes
Yes
Parametric EQ
No
No
Yes
Bass frequency regeneration
LOL
No
ONLY if bass frequencies already exist
