Wāvtech linkDQ LOC

Introducing the Wāvtech linkDQ Active 2-channel line output converter with Parametric EQ. Achieve precision audio control with 0.04% distortion, an impressive 116dBA of S/N ratio, and frequency range of 10Hz to 100kHz. This converter offers up to 10Vrms of output voltage and 500mA of +12V output, with adjustable boost and frequency from 30-80Hz. It also features a turn-on trigger with DC-offset and audio detection. Ensure unbeatable audio experiences with the Wāvtech linkDQ.

• linkDQ Features
  • 2-Channel Line Driver or Line Output Converter (LOC)
  • Adjustable Parametric EQ
    • Selectable Narrow or Wide
    • Frequency Range 30Hz to 80Hz
  • Remote Level Control Ready (Sold Separately)
  • Differential Balanced Inputs
  • Low Impedance Outputs
  • Variable Gain Adjustment w/Clip LED
  • Auto Turn-On via DC-Offset or Audio Signal Detect
  • Generated +12V Remote Output
  • OEM Load Detect Compatible

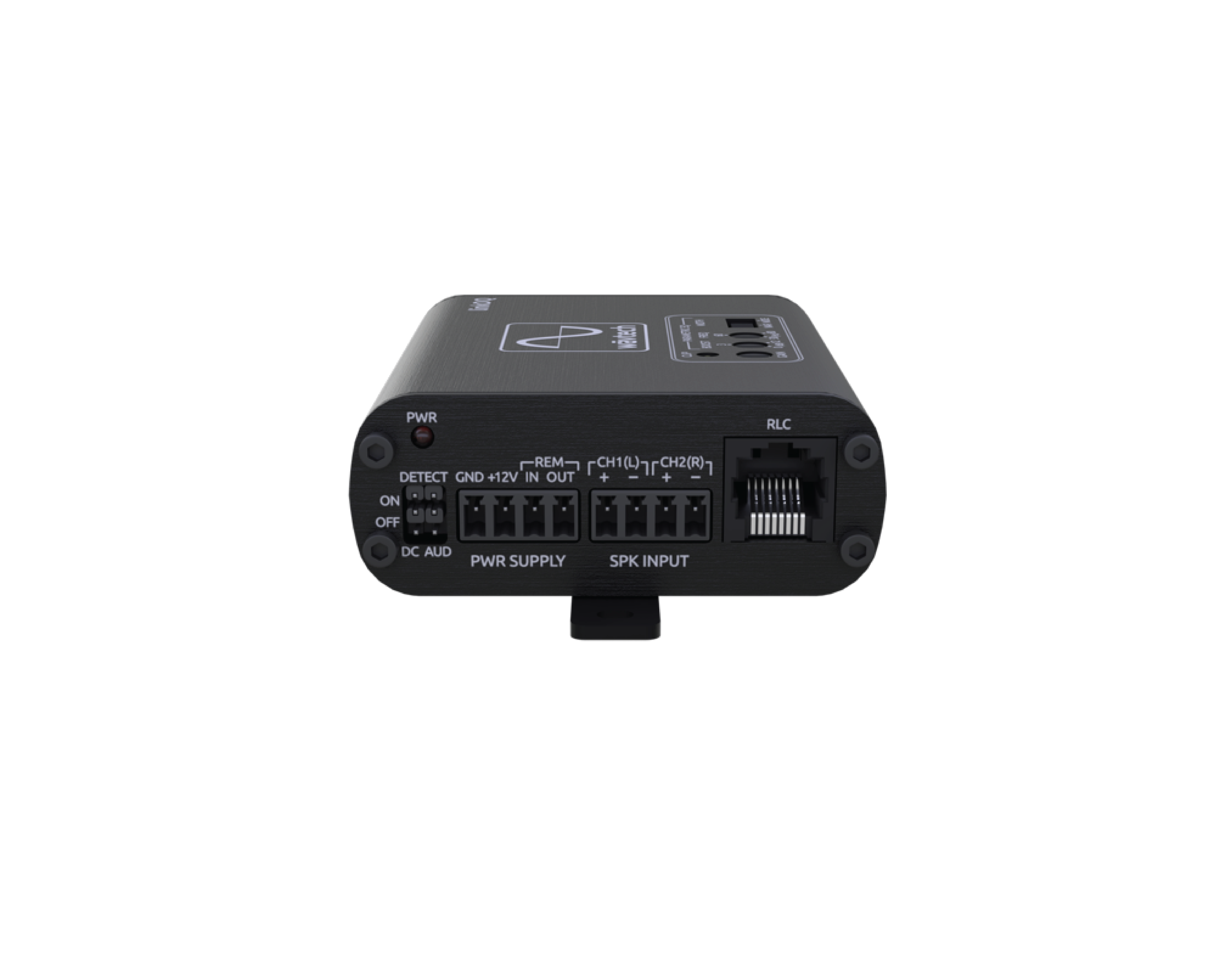

  • Locking Detachable Power/Speaker Terminals

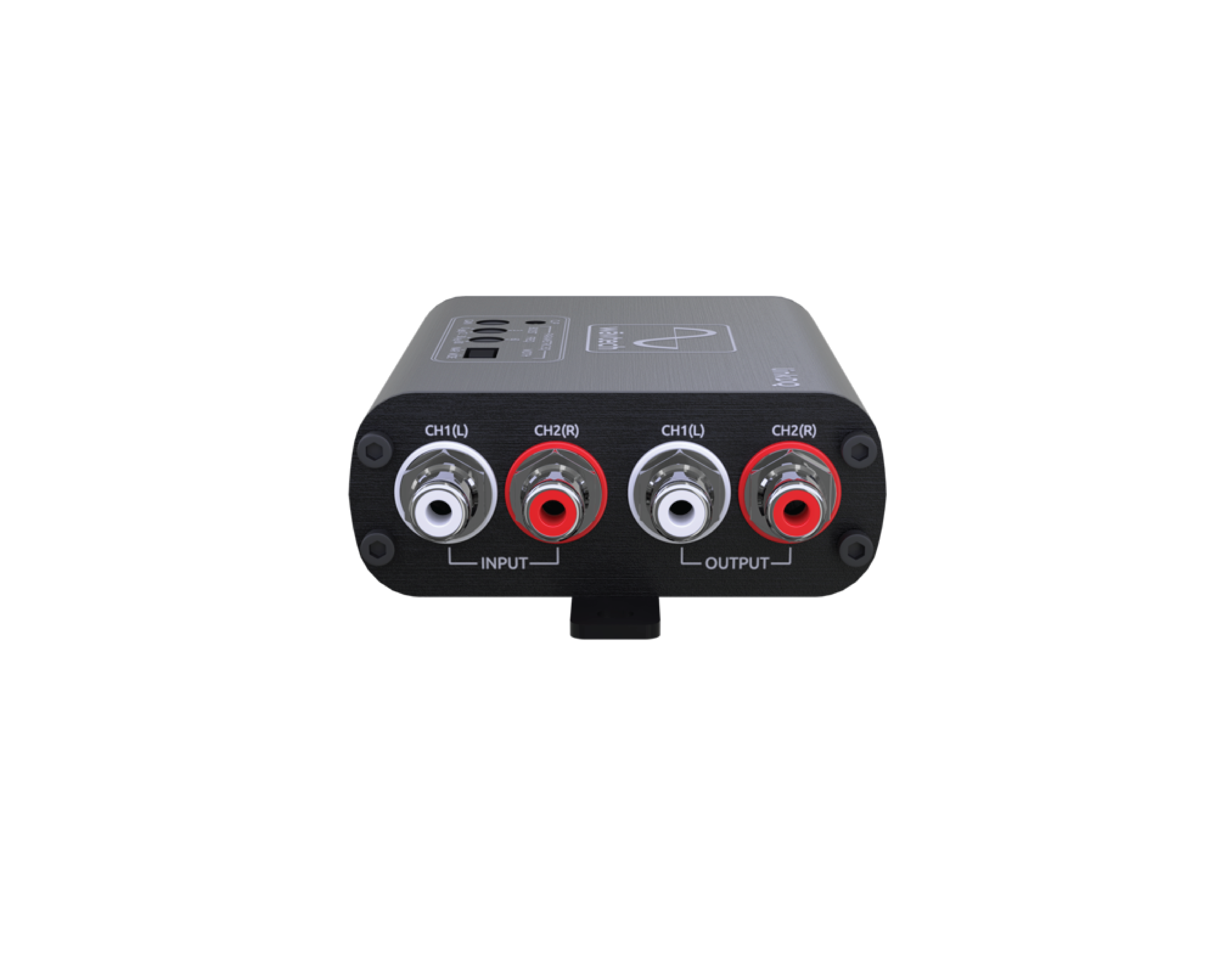

  • Professional Grade Panel Mount RCA’s
  • Compact Aluminum Chassis w/Detachable Mounting Tabs
  linkDQ Specifications
  • Output Voltage (Max)--------- >10Vrms
  • Output Impedance ------------- <50Ω
  • Input Sensitivity
    • SPK --------------------------- 2-20Vrms, 4-40Vrms
    • RCA --------------------------- 0.5-5Vrms
  • Max Input Voltage (SPK) ------ 40Vrms
  • Frequency Response ----------- <10Hz to > 100kHz
  • THD+N (SPK/RCA) --------------- <0.04% / <0.04%
  • S/N (SPK/RCA) -------------------- >115dBA / >116dBA
  • Parametric EQ (Boost/Freq) 0 to +12dB / 30-80Hz
  • Turn-On Trigger ------------------ +12V, DC-offset & Audio Detect
  • Generated +12V Output ------ >500mA
  • Chassis Dimensions ------------- 1.1”x2.9”x3.5” (29x75x89.5mm)
