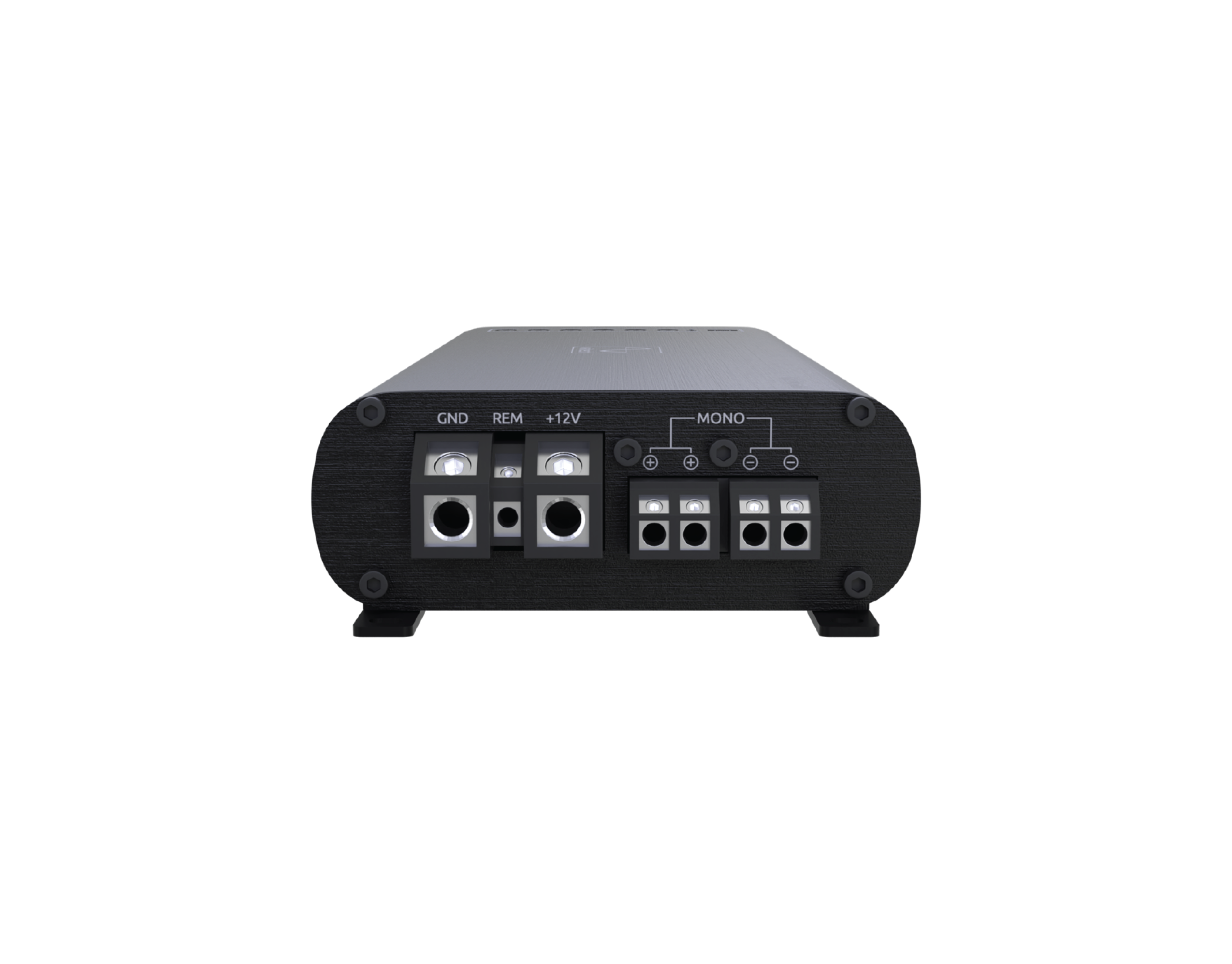

Wāvtech link500.1mini Subwoofer amplifier with Parametric EQ

Experience powerful bass in any system with the Wāvtech link500.1mini Subwoofer amplifier. With 500 watts of RMS power @ 2ohms and speaker level input handling up to 40V, it's the perfect choice for an aftermarket head unit. Plus, its 24dB per octave crossover and adjustable Parametric EQ provide the tuning needed to get the most out of any subwoofer. Compact and compatible with start/stop systems, enjoy superior sound quality with the link500.1mini!

link500.1mini Features

• 500 Watt Mono Amplifier
• 300 watts x 1 @ 4 ohms
• 500 watts x 1 @ 2 ohms
•     Small Footprint Only 9.05”x4.5”x1.65”
•     Fully Adjustable Parametric EQ
•     Variable Low-Pass Crossover (-24dB/oct)
•     Variable Subsonic Filter (-24dB/oct)
• Remote Level Control (RLC) w/Optional linkRC
• Start/Stop System Compatible
• Differential Balanced Inputs
• Variable Gain Adjustment w/Clip LED
• Auto Turn-On via DC-Offset or Audio Signal Detect
• OEM Load Detect Compatible
• Locking Detachable Hi-Level Speaker Terminals
• Professional Grade Panel Mount RCA’s
• Compact Aluminum Chassis w/Detachable Mounting tabs

link500.1mini Specifications

• Input SensitivitySPK --------------------------- 1-20Vrms, 2-40Vrms
• RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms
• Max Input Voltage (SPK) ------ 40Vrms
• Frequency Response ----------- <10Hz to >500Hz (=0/-3dB)
• THD+N ------------------------------- <1% at rated power
• S/N ------------------------------------- >78dBA (1W, 4Ω)

PRODUCT MANUAL
