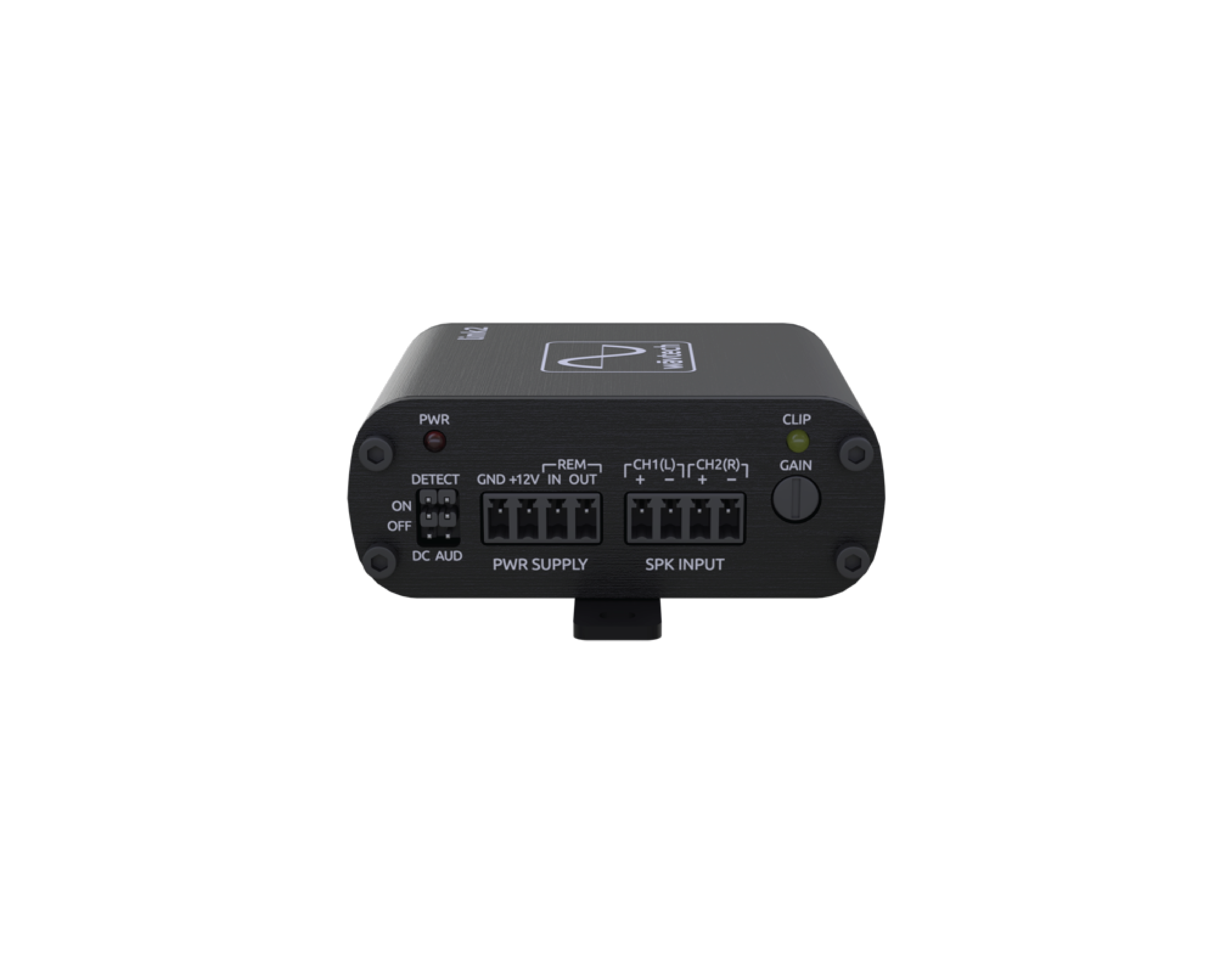

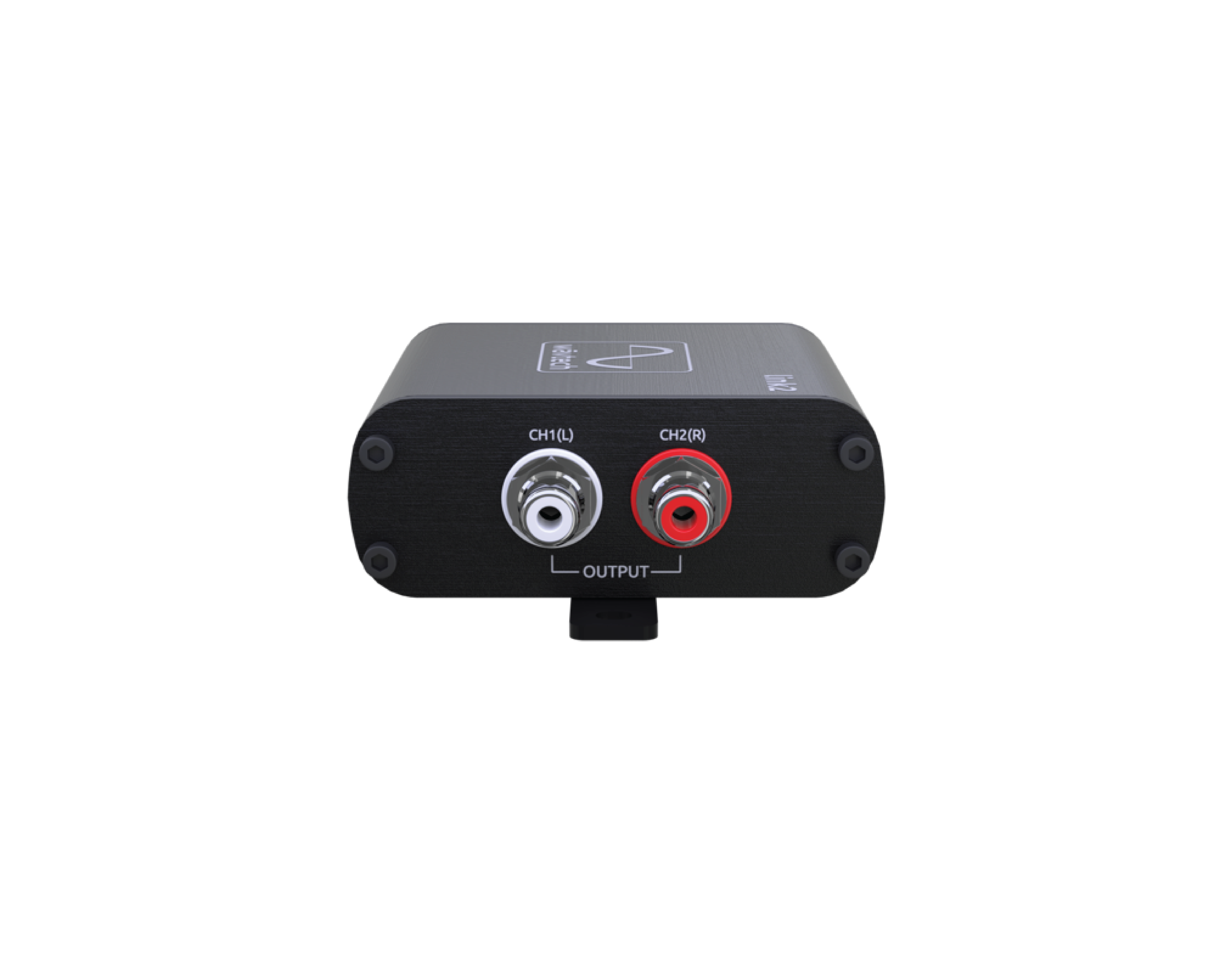

Wāvtech link2 LOC

The Wāvtech link2 is the ideal 2-channel line output converter for those who don't need additional features. Its size allows for easy installation anywhere, while its OEM load detection ensures compatibility with factory systems. Experience up to 40V RMS input and 10V RMS output at less than 50 ohms. Get the perfect 2-channel LOC with the Wāvtech link2.

link2 Features

• 2-Channel Line Output Converter (LOC)
• Differential Balanced Inputs
• Low Impedance Outputs
• Variable Gain Adjustments w/Clip LEDs
• Auto-Turn On via DC-Offset or Audio Signal Detect
• Generated +12V Remote Output
• OEM Load Detect Compatible
• Locking Detachable Power/Speaker Terminals
• Professional Grade Panel Mount RCA’s
• Compact Aluminum Chassis w/Detachable Mounting Tabs

• Output Voltage (Max) ----------- >10Vrms
• Output Impedance ---------------- <50Ω
• Input Sensitivity -------------------- 2-20Vrms, 4-40Vrms
• Max Input Voltage ----------------- 40Vrms
• Frequency Response ------------- <10 Hz to >100kHz
• THD+N SPK -------------------------- <0.01%
• S/N SPK ------------------------------- >110dBA
• Turn-On Trigger -------------------- +12V, DC-offset & Audio Detect
• Generated +12V Output -------- >500mA
• Chassis Dimensions --------------- 1.1”x2.9”x2.5” (29x75x63mm)



PRODUCT MANUAL
