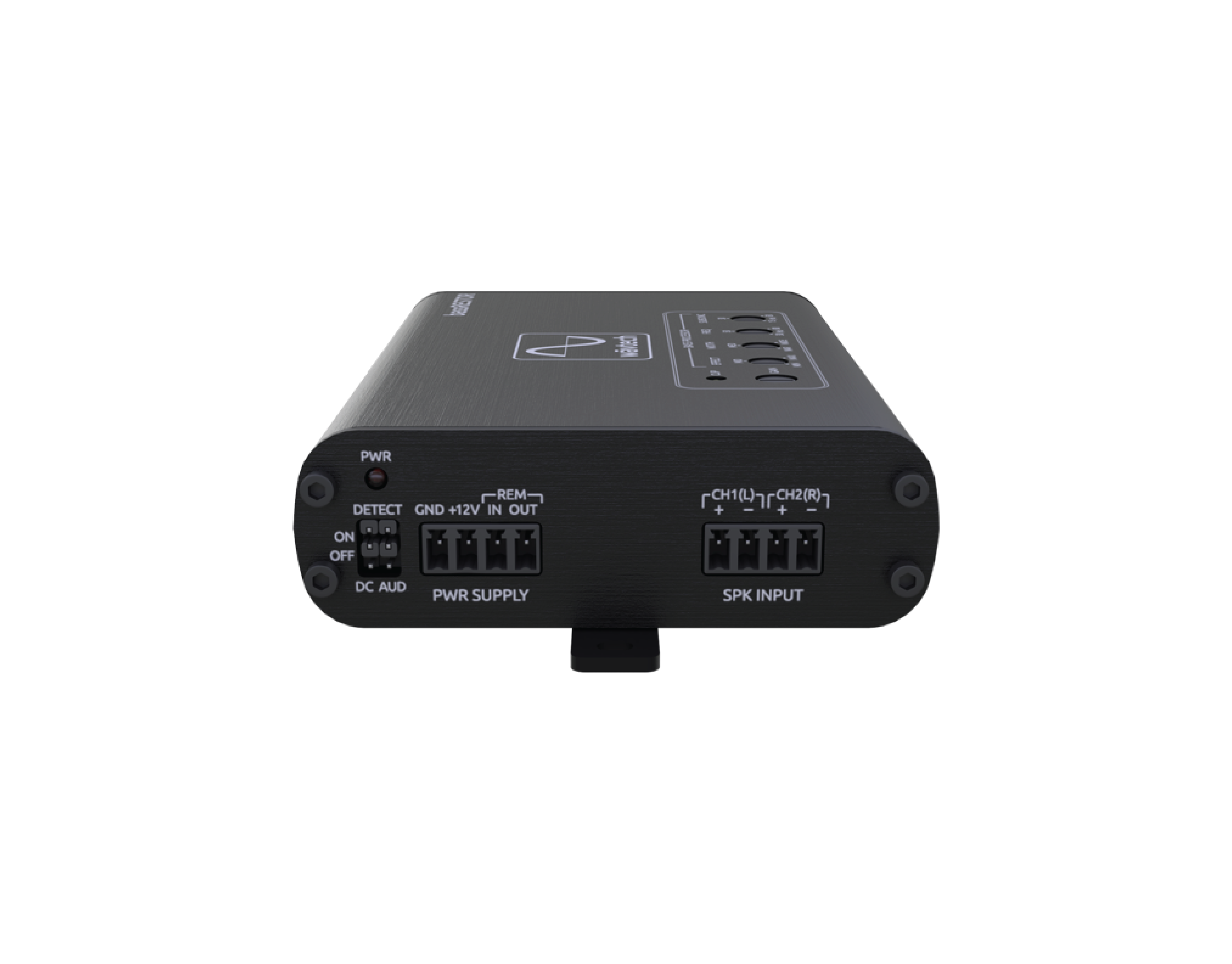

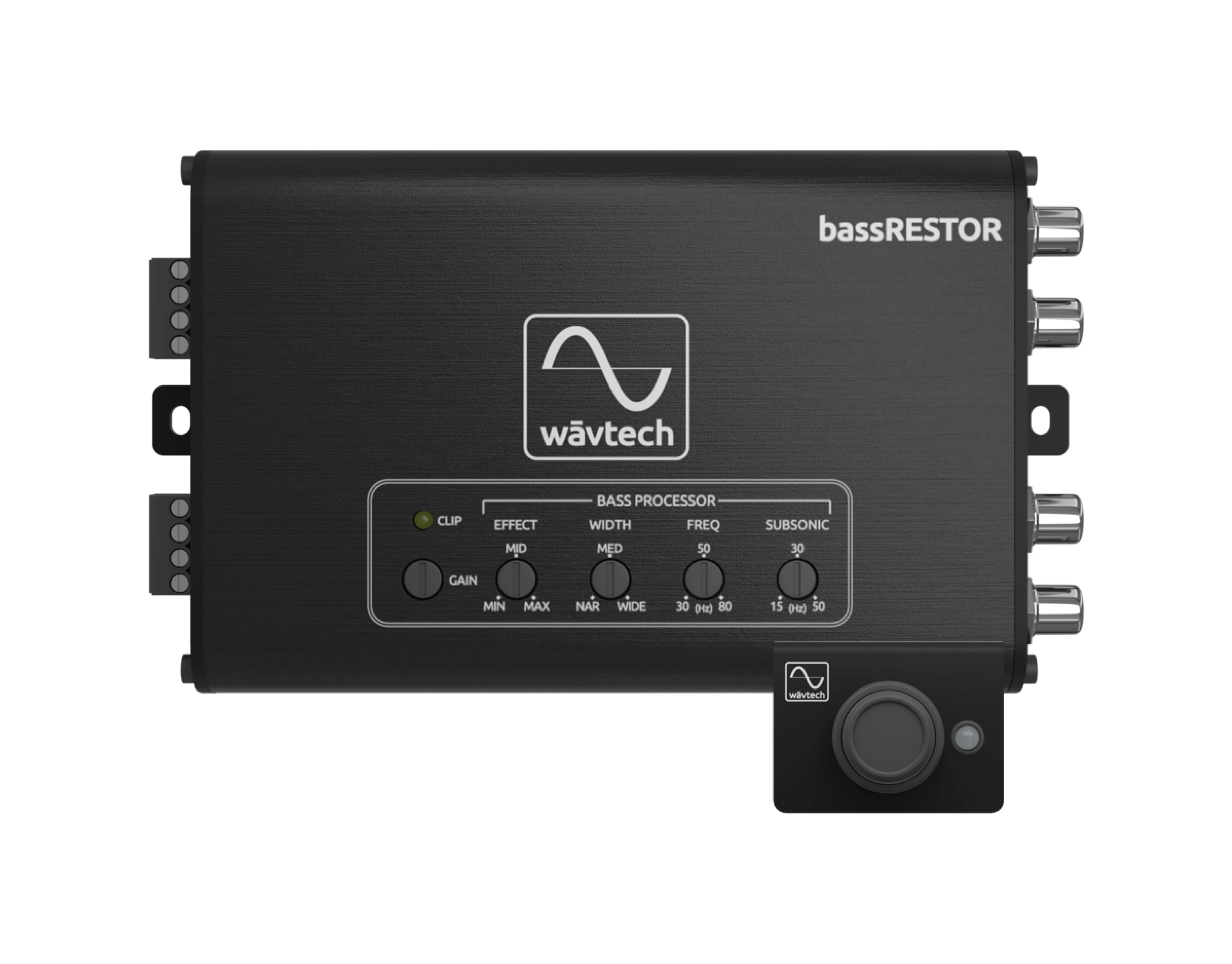

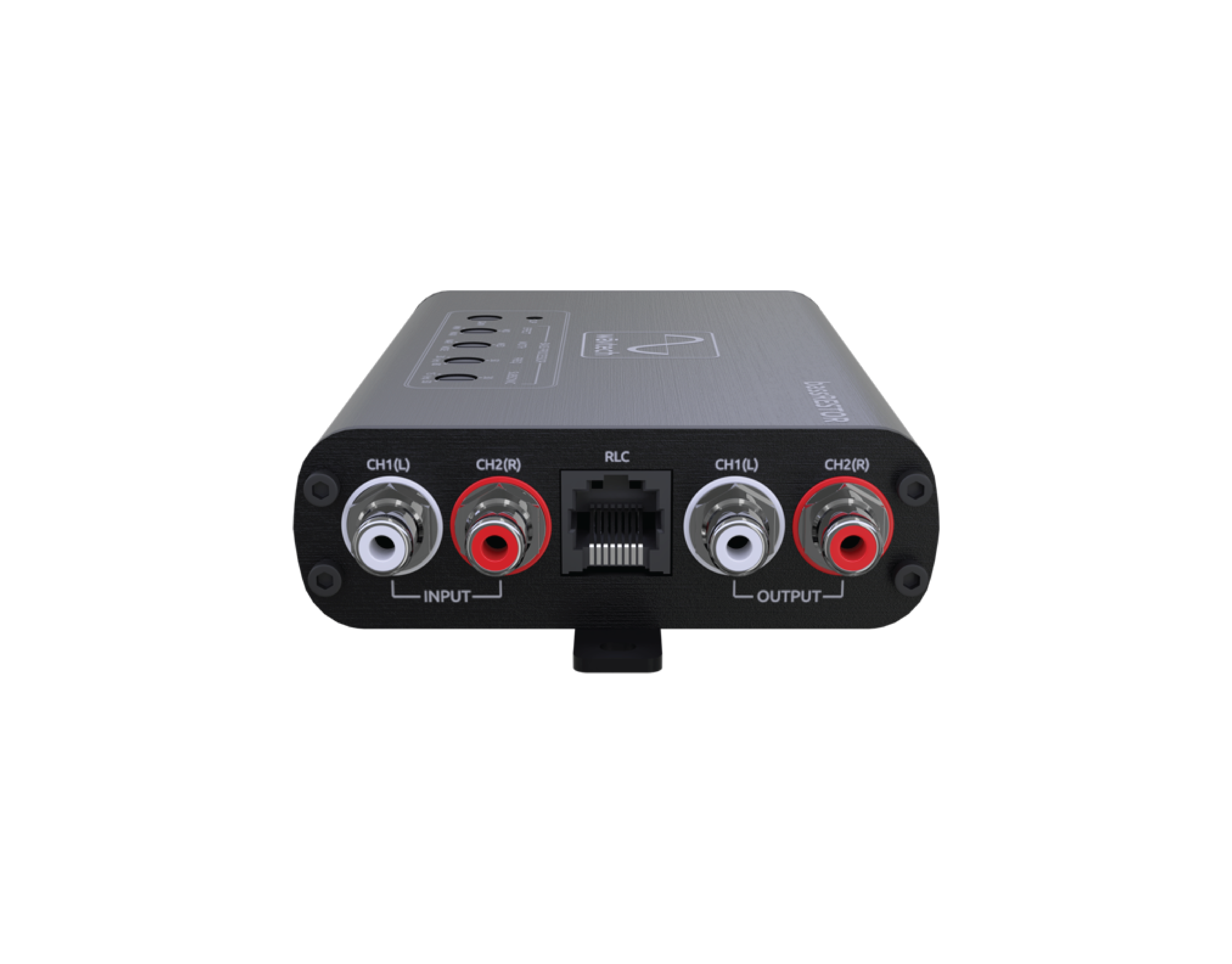

Wāvtech bassRESTOR LOC

Introducing the Wāvtech bassRESTOR Active 2-channel line output converter with Parametric EQ. Achieve precision audio control with 0.04% distortion, an impressive 116dBA of S/N ratio, and frequency range of 10Hz to 100kHz. This converter offers up to 10Vrms of output voltage and 500mA of +12V output, with adjustable boost and frequency from 30-80Hz. It also features a turn-on trigger with DC-offset and audio detection. Ensure unbeatable audio experiences with the Wāvtech linkDQ.

bassRESTOR Features

• 2CH Bass Restoration Processor

  • Complete Tuning Control (Effect, Width, Freq)

  • Variable Subsonic Filter

• 2CH Line Driver or Line Output Converter

• Includes Multi-Function Remote Level Control

• Differential Balanced Inputs

• Low Impedance Outputs

• Variable Gain Adjustment w/Clip LED

• Auto Turn-On via DC-Offset or Audio Signal Detect

• Generated +12V Remote Output

• OEM Load Detect Compatible

• Locking Detachable Power/Speaker Terminals

• Professional Grade Panel Mount RCA’s

• Compact Aluminum Chassis w/Detachable Mounting Tabs

bassRESTOR Specifications

• Output Voltage (Max) ----------- >10Vrms

• Output Impedance --------------- <50Ω

• Input Sensitivity

  • SPK ----------------------------- 2-20Vrms, 4-40Vrms

  • RCA ----------------------------- 0.5-5Vrms, 1-10Vrms

• Max Input Voltage (SPK) ------- 40Vrms

• Frequency Response ------------- 15Hz to >100kHz

• THD+N (SPK/RCA) ---------------- <0.05% / <0.1%

• S/N (SPK/RCA) --------------------- >115dBA / >114dBA

• Bass Restoration

  • Effect -------------------------- up to +18dB

  • Width -------------------------- Nar-Wide

  • Freq ---------------------------- 30-80Hz

• Subsonic Filter ---------------------- 15Hz-50Hz

• Turn-On Trigger -------------------- +12V, DC-offset & Audio Detect

• Generated +12V Output -------- >500mA

• Chassis Dimensions --------------- 1.1”x3.5”x5.2” (29x90x133mm)

PRODUCT MANUAL
